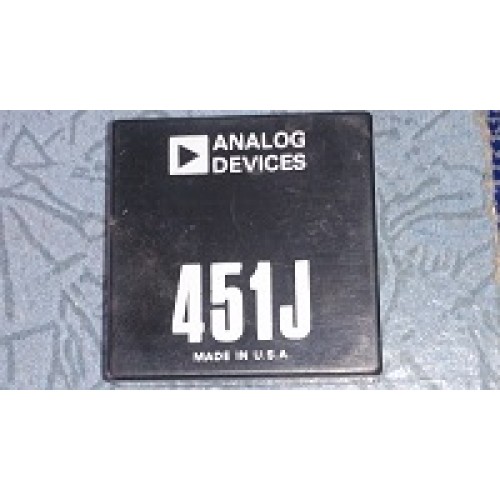

- Description: VLTG-TO-FREQ - FREQ-TO-VLTG CONVERTER - F/V,LINEARITY .03%,TEMPCO 100PPM/C )PKG TYPE= MODULE)
- Category: REGULATOR
- Manufacturer: ANALOG DEVICES
- Body width: 1.510 inches maximum
Operating temp range: -25.0 to 85.0 deg celsius
Inclosure material: ceramic
Input circuit pattern: 2 input
Design function and quantity: 1 converter, frequency to voltage
Terminal type and quantity: 9 printed circuit
Body length: 1.510 inches maximum
Body height: 0.410 inches maximum
Storage temp range: -55.0 to 85.0 deg celsius
Features provided: hermetically sealed and adjustable and bipolar and negative outputs and positive outputs
Inclosure configuration: dual-in-line
Terminal surface treatment: solder
Voltage rating and type per characteristic: -15.0 volts minimum power source and 15.0 volts maximum power source
Analog Devices Inc
- Product Code: AD451J
- Availability: 10
Tags: AD451JN, AD451 AD451JN, AD451KN
