High Q Silicon Varactron Voltage Variable Capacitance Diodes

30V Vrrm, 100pF Capacitance Varactor Diode

Search: 1N5476B+JAN
Varactor Diode
V(RRM)(V) Rep.Pk.Rev. Voltage=30
Ct{Cj} Nom. (F) Junction Cap.=100p
@V(T){V(J)}(V)(Test Condition)=4.0
C1/C2 Min. Capacitance Ratio=2.9
Q Factor Min.=200
@Freq. (Hz) (Test Condition)=50M
P(D) Max.(W) Power Dissipation=400m
Semiconductor Material=Silicon
Mil Number=JAN1N5476B

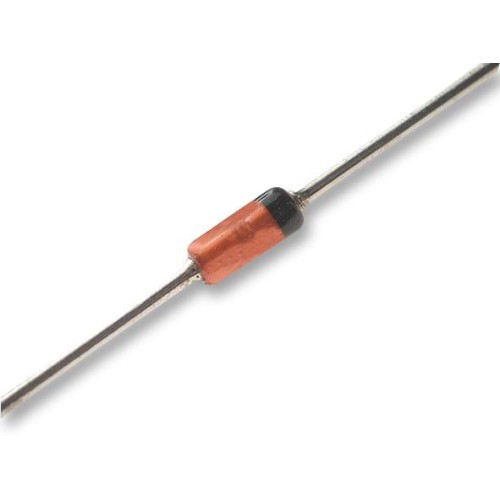

Package=DO-7
Military=Y
