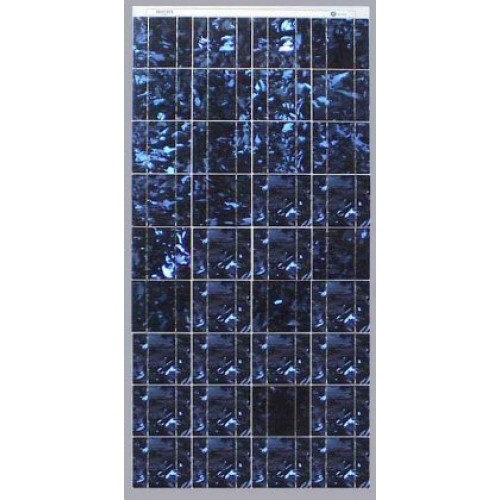

SPV15012

 Nominal Power – Pmax ( W )

150

Voltage at maximum Power - Vmp (V)

25.5

Current at maximum Power - Imp (A)

6.4

Open circuit Voltage - Voc (V)

32.4

Short Circuit Current - Isc (A)

5.7

Maximum System Voltage

1000 VDC

Maximum Series Fuse Rating

12 A

Temperature Coefficient – Pmax

-0.46 % /°C

Temperature Coefficient - Voc

-0.35 % /°C

Temperature Coefficient - Isc

0.05 % /°C

Solar Cells per Modules - Unit

54 (9x6 Matrix)

Solar Cell Size and Type

156 mm, multi-crystalline

 L x W x T - mm

1490 x 990 x 42

Mounting Holes Y - mm

1100

Mounting Holes X - mm

950

Area – m2

1.48

Weight – Kg

17.5
