75W /12V Poly Solar Module Panels ... More »

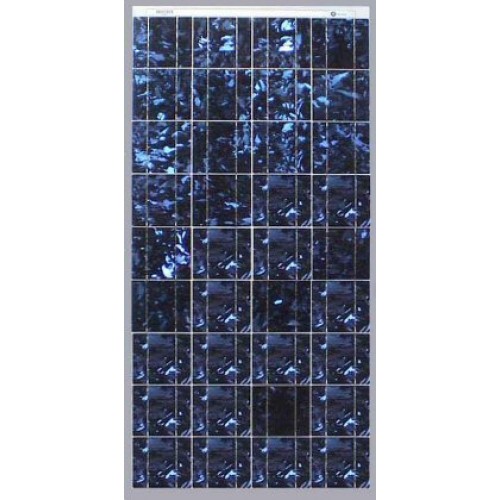

75W /12V Poly Solar Module Panels
Nominal Power – Pmax ( W ) |
75 |
Voltage at maximum Power - Vmp (V) |
17.4 |
Current at maximum Power - Imp (A) |
4.31 |
Open circuit Voltage - Voc (V) |
21.4 |
Short Circuit Current - Isc (A) |
4.73 |
Maximum System Voltage |
600 VDC |
Maximum Series Fuse Rating |
10 A |
Temperature Coefficient – Pmax |
-0.46 % /°C |
Temperature Coefficient - Voc |
-0.35 % /°C |
Temperature Coefficient - Isc |
0.05 % /°C |
Solar Cells per Modules - Unit |
36 (9x4 Matrix) |
Solar Cell Size and Type |
156 mm, multi-crystalline |
L x W x T - mm |
890 x 655 x 34 |
Mounting Holes Y - mm |
510 |
Mounting Holes X - mm |
610 |
Area – m2 |
0.583 |
Weight – Kg |
6.6 |
