WS512K32N -20H1I

WS512K32N -20H1I

_{IC 512K X 32 SRAM MODULE, 5V, 20NS, NO CONNECT, 66 PGA 1.075" S - Bulk}

512Kx32 SRAM MODULE, SMD 5962-94611

FEATURES

• Access Times of 15, 17, 20, 25, 35, 45, 55ns
• Packaging

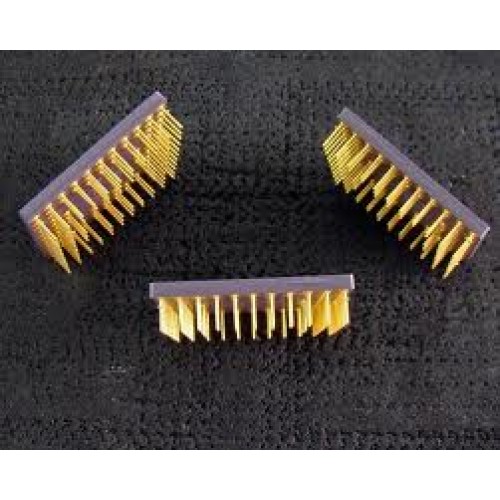

  • 66 pin, PGA Type, 1.075" square, Hermetic Ceramic HIP (Package 400)
  • 68 lead, 40mm Hermetic Low Profile CQFP, 3.5mm (0.140") (Package 502)
  • 68 lead, Hermetic CQFP (G2U), 22.4mm (0.880") square (Package 510) 3.56mm (0.140") height.
  • 68 lead, Hermetic CQFP (G2L), 22.4mm (0.880") square, 5.08mm (0.200") high (Package 528).
  • Organized as two banks of 512Kx32, User Configurable as 1Mx16 or 2Mx8
  • Commercial, Industrial and Military Temperature Ranges
  • TTL Compatible Inputs and Outputs
  • 5V Power Supply
  • Low Power CMOS
  • Built-in Decoupling Caps and Multiple Ground Pins for Low Noise Operation
  •
